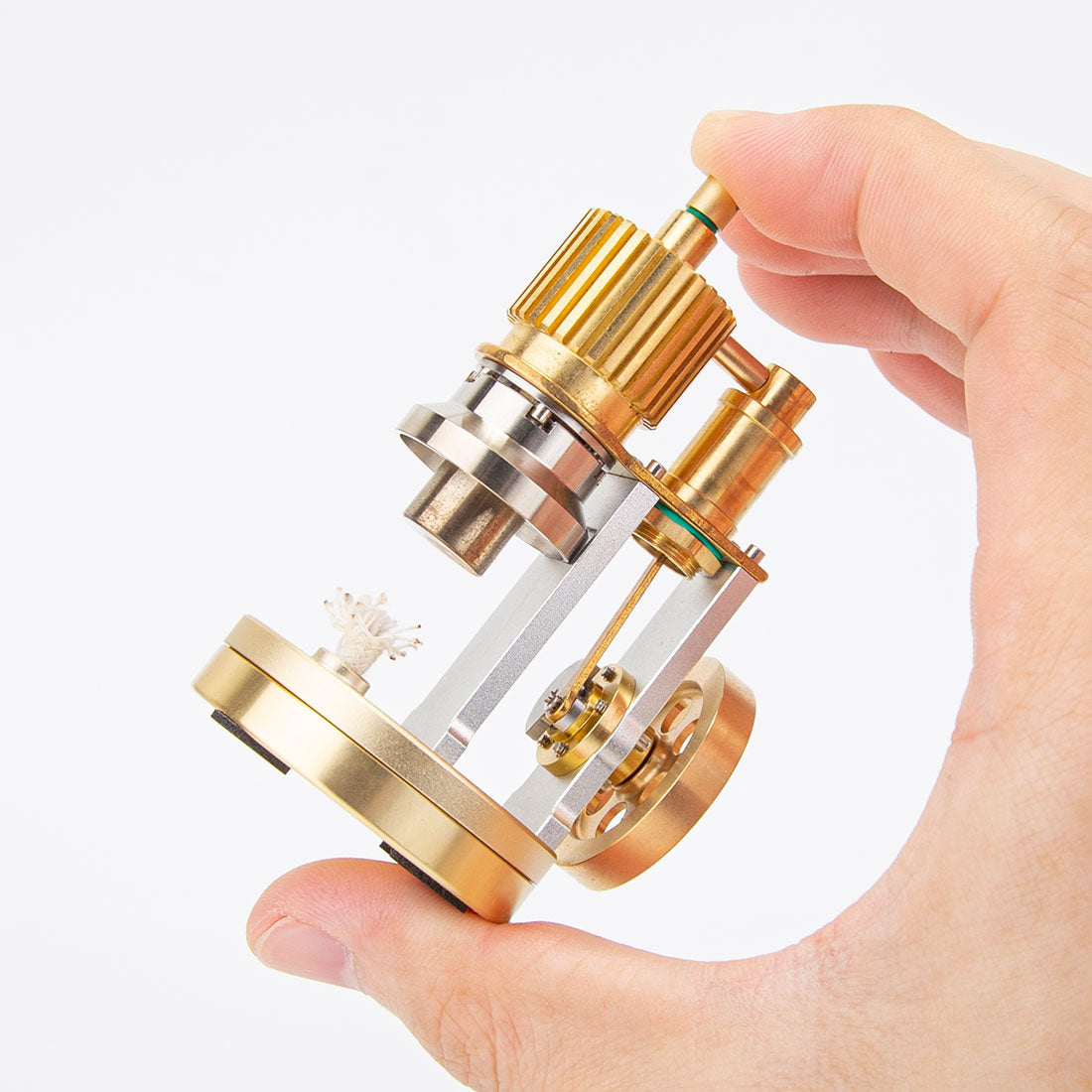

Step into the world of thermodynamic innovation with the ENJOMOR Miniature Ringbom Stirling Engine Model Kit—a compact, elegant marvel that brings the principles of external combustion engines to life. Designed for hobbyists, educators, and curious minds, this free-piston Stirling engine demonstrates energy conversion through heat in a mesmerizing, rhythmic motion. Let’s explore its unique design, educational value, and why it’s a must-have for anyone fascinated by mechanical engineering.
Standout Features at a Glance
| Feature | Description |
|---|---|
| Innovative Ringbom Design | Eliminates direct mechanical links between the displacer and piston, relying on pressure shifts for motion—an engineering breakthrough in simplicity. |
| Efficiency in Motion | Only 4 moving components (piston, displacer, flywheel, and heat exchanger) create a smooth, pulsating operation with minimal friction. |
| Thermodynamic Education | Visualizes how heat energy converts to mechanical work, making it ideal for learning about Stirling cycle principles, gas expansion, and energy transfer. |
| Compact & Portable | Weighing just 120g with dimensions of 55x43x83mm, it fits in the palm of your hand—perfect for desk displays or on-the-go demonstrations. |
| Easy Operation | Powered by 95% alcohol fuel, simply ignite the burner, and watch the engine self-start as it responds to temperature differences. |
Technical Specifications
| Parameter | Value |
|---|---|
| Brand/Model | ENJOMOR J01 |
| Weight | 120g |
| Dimensions | 55mm (L) × 43mm (W) × 83mm (H) |
| Engine Type | Free-piston Stirling (external combustion) |
| Fuel | 95% alcohol (burner included) |
| Moving Components | 4 (piston, displacer, flywheel, heat exchanger) |
| Operation Principle | Uses heat from the burner to create gas expansion/contraction, driving the piston via pressure changes. |
Why the Ringbom Stirling Engine Stands Out
-
Engineering Simplicity, Big Impact:
Unlike traditional Stirling engines with complex linkages, the Ringbom design uses a free piston and displacer, demonstrating how pressure differentials alone can generate motion—a testament to minimalist engineering. -
Mesmerizing Visual Learning:
Watch as the flywheel spins steadily while the displacer moves up and down, illustrating the Stirling cycle’s four phases (isothermal expansion, heat rejection, isothermal compression, heat addition) in real time. -
Perfect for All Skill Levels:
No prior engineering knowledge is needed. The kit comes fully assembled—just add fuel, ignite the burner, and within seconds, observe the engine’s rhythmic pulse, making it ideal for beginners and experts alike. -
Nostalgic & Decorative:
Its vintage-inspired design and precise craftsmanship make it a stunning desktop centerpiece, sparking conversations about mechanical ingenuity and thermodynamic science.
Who Is This Kit For?
- STEM Educators: Teach heat engines, energy conversion, and thermodynamics in a hands-on, engaging way.
- DIY Enthusiasts: Appreciate the elegance of simple mechanisms and the beauty of functional design.
- Collectors: Add a unique, historically significant engine model to your mechanical collection.
- Curious Minds: Explore the basics of engineering and physics through a captivating, operational model.
Operation Tips
- Fuel Safety: Use only 95% alcohol in the burner; avoid open flames near the engine during operation.
-
Start-Up Guide:
- Place the engine on a stable, heat-resistant surface.
- Add 5–10ml of alcohol to the burner and ignite it.
- Wait 10–20 seconds for the cylinder to heat up—the engine will start automatically as the temperature differential builds.
- Maintenance: Wipe the engine with a dry cloth after use; avoid lubricating moving parts (they’re designed for minimal friction).
FAQs
Q: Does the kit require assembly?
A: No, it arrives fully assembled—just add fuel to start.
A: No, it arrives fully assembled—just add fuel to start.
Q: How long does it run on a single fuel charge?
A: Approximately 5–10 minutes, depending on the alcohol volume and environmental conditions.
A: Approximately 5–10 minutes, depending on the alcohol volume and environmental conditions.
Q: Is it suitable for children?
A: Recommended for ages 14+ due to open flames; adult supervision is essential.
A: Recommended for ages 14+ due to open flames; adult supervision is essential.
Conclusion
The ENJOMOR Miniature Ringbom Stirling Engine Kit is more than a model—it’s a window into the world of thermodynamic engineering. Whether you’re using it to teach students, satisfy your mechanical curiosity, or adorn your desk with a functional work of art, this engine delivers endless fascination through its innovative design and rhythmic operation. Unlock the secrets of heat energy today! Shop Now and let this tiny engine spark your passion for engineering.
The ENJOMOR Miniature Ringbom Stirling Engine Kit is more than a model—it’s a window into the world of thermodynamic engineering. Whether you’re using it to teach students, satisfy your mechanical curiosity, or adorn your desk with a functional work of art, this engine delivers endless fascination through its innovative design and rhythmic operation. Unlock the secrets of heat energy today! Shop Now and let this tiny engine spark your passion for engineering.
