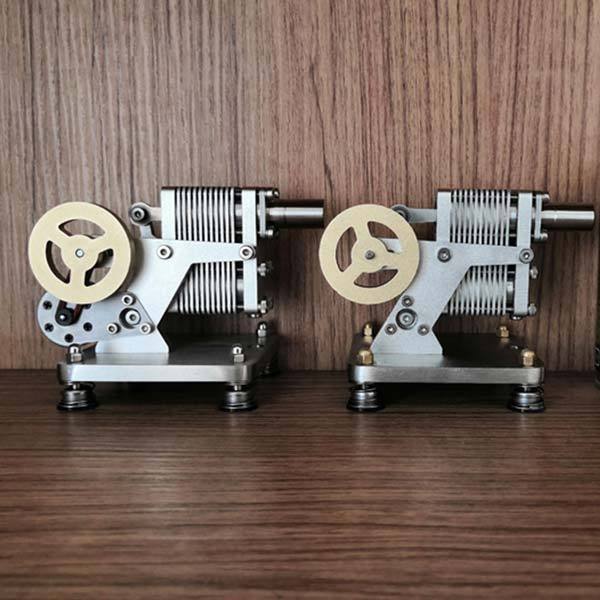

All-Metal Stirling Engine Educational Model - DIY High-Speed Generator

All-Metal Stirling Engine Educational Model - DIY High-Speed Generator

Unleash the wonders of physics and engineering with our All-Metal Stirling Engine Educational Model. This exquisite DIY generator provides an enlightening hands-on experience, perfect for students, hobbyists, and collectors alike.

Standout Features:

• Exceptional Build Quality: Crafted from industrial-grade materials, this all-metal model is assembled from over 150 precision-engineered components, ensuring durability and long-lasting performance.
• Innovative Design: Featuring a T-shaped rocker crank α structure, the Stirling engine boasts high power and speed, making it a marvel of engineering.
• Smooth Operation: With moving parts inlaid with rolling bearings, experience minimal friction and seamless motion for optimum efficiency.
• Precision Engineering: The cylinder piston is made from SUJ-2 alloy steel, providing high hardness, excellent wear resistance, and precision clearance for superior functionality.
• Reliable Performance: All connections are securely fastened with screws and sealed with copper pads, ensuring reliability even under high temperatures.
• Superior Heat Management: The high-density aluminum alloy heat sink enhances heat exchange, while a double-layer spring shock absorption base offers smoother operation.
• Compact & Stylish: With a sleek design crafted from 6061 CNC aluminum alloy, this compact model is not just a learning tool but also a decorative piece for any space.

Instructions for Use and Maintenance:

1. Before use, rotate the flywheel to ensure smooth movement. If resistance is felt, check the cylinder for blockages and clean as necessary.
2. Fill the alcohol lamp with 95% alcohol (no more than two-thirds full), ignite, and place under the heating cylinder for about 40 seconds to initiate operation.

Warning Tips:

• High temperatures are generated during operation. Avoid direct contact with the heating cylinder and heat sink to prevent burns.
• Only use ordinary alcohol lamps as a heat source; avoid windproof lighters or high-temperature heaters.
• Do not lubricate the piston cylinder with any greases to maintain optimal function.
• For first-time users, utilize the engine base for easier control during startup.

Specifications:

• Engine Size: 108mm (L) x 70mm (W) x 78mm (H)
• Number of Cylinders: 2
• Bore Diameter x Stroke: 10mm x 10mm
• Speed: 3700-4000 RPM
• Flywheel Diameter: 36mm
• Package Weight: 480g

What’s Included:

• 1 x Stirling Engine Model
• 2 x Alcohol Lamp
• 2 x Wrench

Ignite your curiosity and experience the thrilling world of thermodynamics firsthand with the All-Metal Stirling Engine Educational Model.
Order now and take the first step towards mastering the art of engineering!
