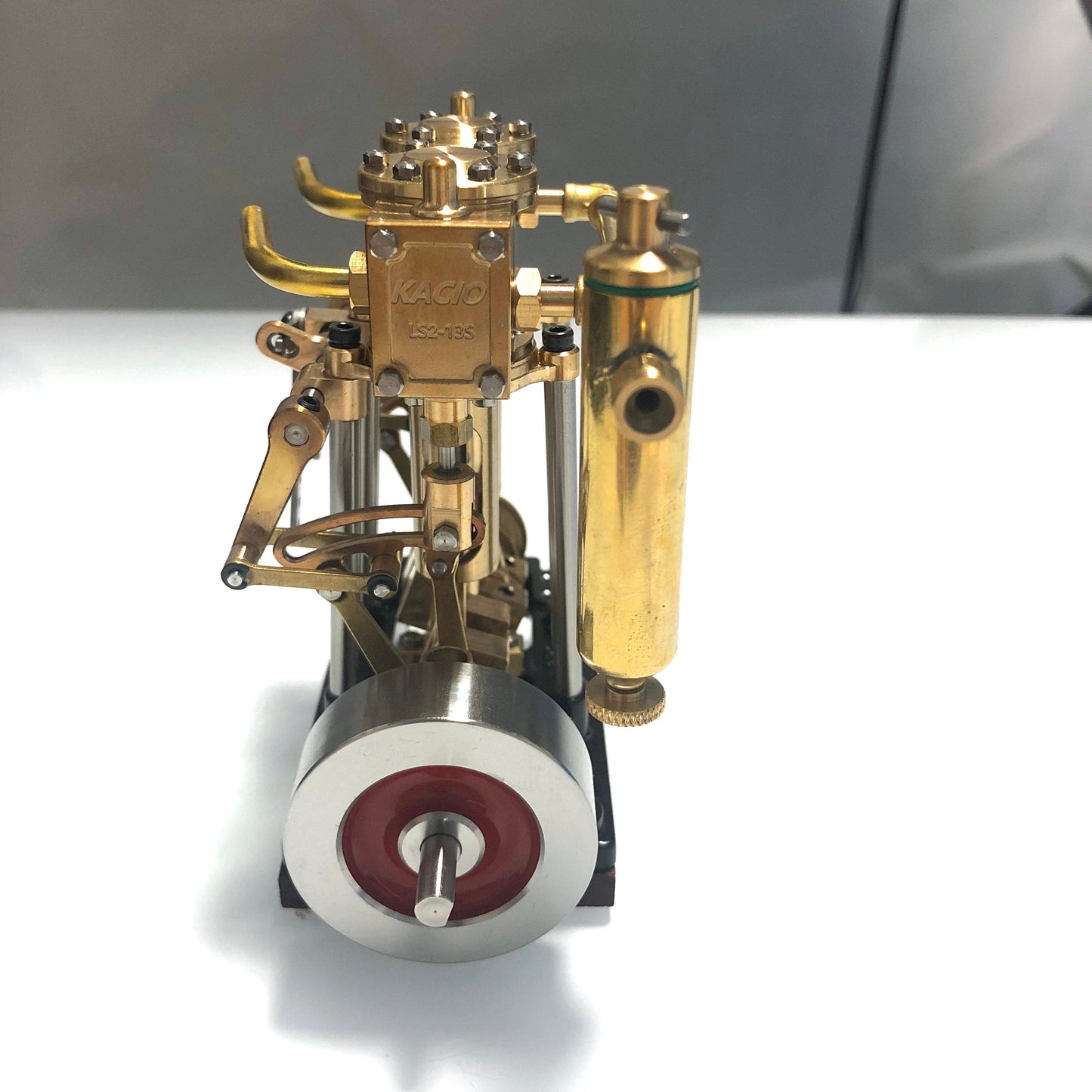

Unleash the power of steam with the KACIO LS2-13S Compact Vertical Steam Engine, meticulously engineered for model boat enthusiasts. This stunning 2-cylinder reciprocating design not only ensures exceptional performance but also adds a touch of elegance to your steam model ship.
Standout Features:
Elegant Design: Boasting a refined appearance with a simple yet effective design, this steam engine is perfect for those looking for both aesthetic and functional value.
Precision Engineering: Crafted with a precision casting base and CNC finishing parts, the engine promises reliability and enhanced performance, thanks to its unique ladder frame structure that increases torsional resistance.
High-Quality Materials: The cylinder head is sealed with a high-temperature resistant 0.08mm red copper sheet, while the spindle bearing is made from high hardness beryllium copper, ensuring durability and longevity during operation.
Efficient Lubrication: The integrated oil cup with an oil discharge function allows for easy lubrication, ensuring each friction surface receives optimal support for prolonged service life.
Versatile Compatibility: Specifically designed for steam model ships ranging from 80CM to 120CM, this engine supports both forward and reverse rotation, offering robust torque for propeller movement.
Collector's Delight: Its mini and delicate shape makes it a fantastic mechanical handicraft that is not only functional but also a wonderful collectible gift for steam model aficionados.
Specifications:
Material: Copper
Model: LS2-13S
Base Dimensions: 44mm wide, 76mm long, 95mm high + 6mm thick sleepers
Cylinder Diameter: 14.0mm
Stroke: 12.0mm
Spindle Diameter: 5.0mm
Spindle Center Ground Height: 17.0mm
Operating Pressure: 0.05Mpa - 0.8Mpa
Recommended Air Pressure: 0.2Mpa - 0.6Mpa
Inlet Interface Thread: M6-0.5 1/4-40
Product Dimensions: 7.6 x 4.8 x 10.1cm
Product Weight: 660g
Package Dimensions: 21 x 16 x 16cm
Package Weight: 950g
Packing: Box
Why Wait? Elevate Your Model Boating Experience!
Don’t miss out on the opportunity to own the KACIO LS2-13S Compact Vertical Steam Engine. Perfect for enthusiasts aged 14 and above, this steam engine promises to enhance your model boating adventures. Order yours today and watch your steam-powered dreams come to life!
