Compact 4-Cylinder Opposed Steam Engine Model with Gearbox for Miniature Model Ships
Unleash your creativity and craftsmanship with our Compact 4-Cylinder Opposed Steam Engine Model—the ultimate addition for any steam enthusiast or model ship builder! This meticulously crafted steam engine model is not just a mechanical masterpiece; it's a gateway to nostalgia and innovation.
Standout Features:
Exceptional Design: This 4-cylinder steam engine features a piston-type slide valve structure, ensuring smooth operation and reliability.
High Performance: Achieve superior thermal and dynamic conversion efficiency with our compact model, which operates perfectly with a low power boiler.
Robust Construction: Made from premium metal materials, this engine model includes a stainless steel crankshaft and bearings, ensuring durability and longevity.
Versatile Application: Whether it’s for model ships, car models, or small generators, this steam engine fits seamlessly into various projects.
Convenient Maintenance: Designed with removable components for easy upkeep, ensuring you can keep your engine running smoothly with minimal effort.
Specifications:
Material: Metal

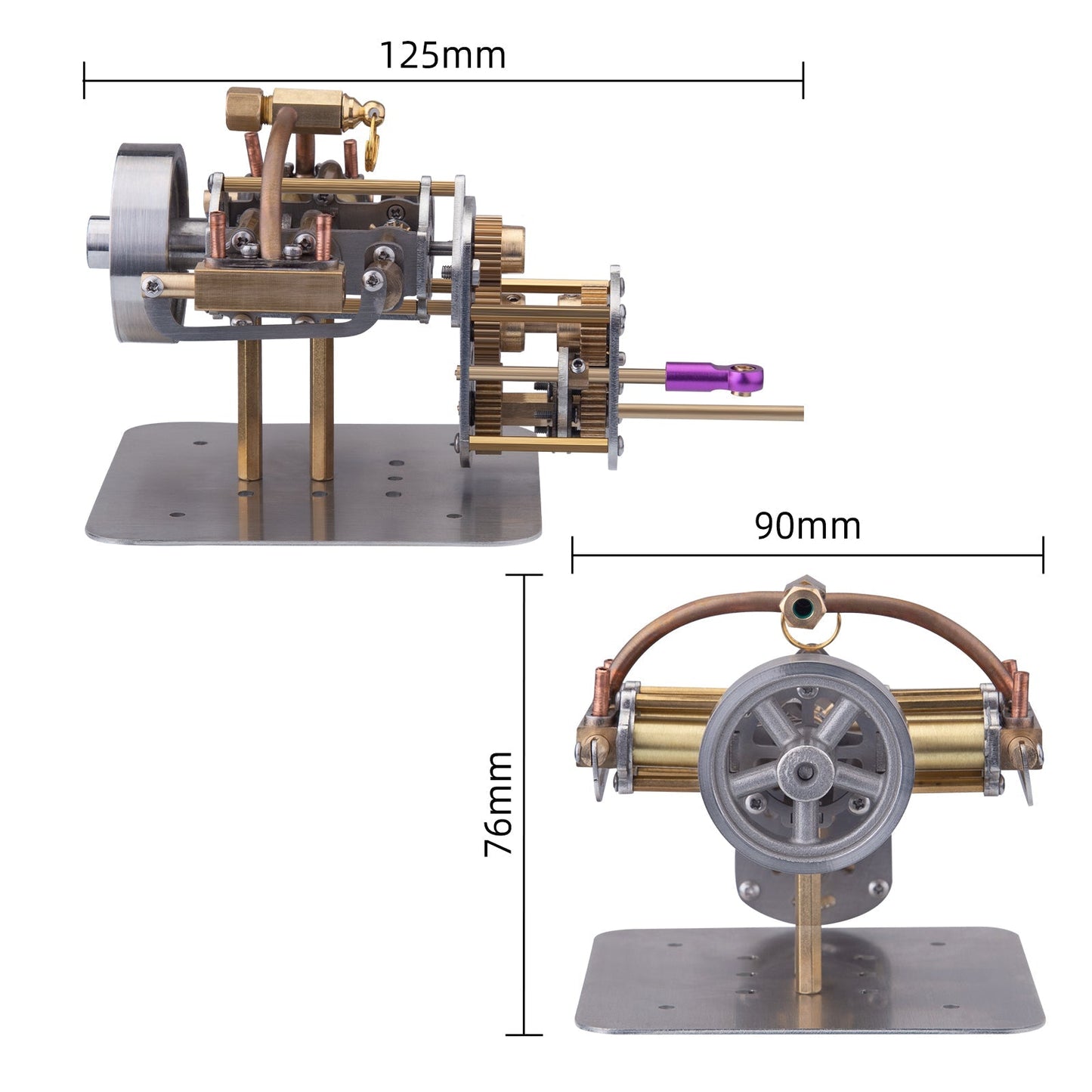

Steam Engine Dimensions: 12.5 x 9 x 7.6 cm
Weight: 350g
Cylinder: Horizontally opposed four cylinders
Bore: 8mm
Stroke: 8mm
Steam Engine Shaft: φ3mm
Valve Gear: Walschaerts
Pressure: 3 kg/cm²
Temperature Range: 50 ~ 120℃
Lubricator: Nut type
Gear Ratio: 1:1.44 (25:36)
Gearbox Dimensions: 29 x 33 x 56mm
Gearbox Weight: 120g
Gearbox Shaft: φ3mm
Gear Ratio: 1:1 (36:36)
Package Dimensions: 20 x 15 x 10cm
Package Weight: 650g
Suitable Age: 14+
Why Wait?
Don’t miss out on the opportunity to own this stunning steam engine model. Perfect for both display and functionality, it’s an unmatched value for collectors and hobbyists alike. Order now and start your steam-powered adventure!
