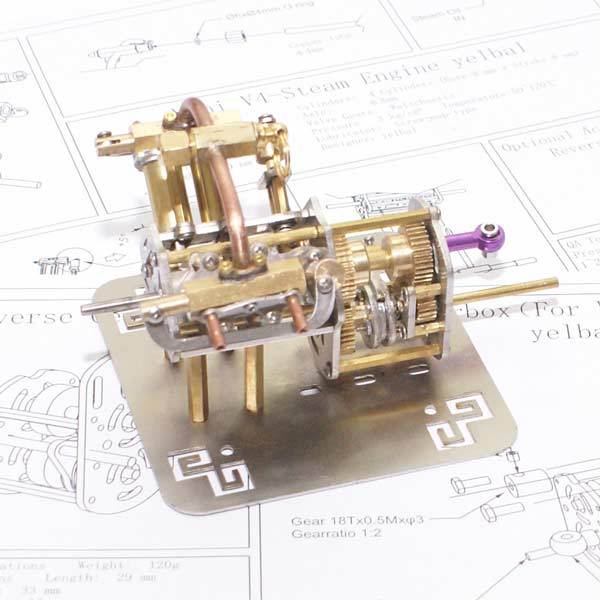

Compact V4 Steam Engine Model with Reversible Gearbox - Creative DIY Gift

Compact V4 Steam Engine Model with Reversible Gearbox - Creative DIY Gift

Discover the fascinating world of steam power with our Compact V4 Steam Engine Model. This miniature marvel is not just a toy; it’s a gateway to understanding the mechanics of steam engines while offering endless fun and learning opportunities!

Standout Features:

• Exquisite Appearance: This mini V4 steam engine is a delightful blend of size and novelty, easily fitting into the palm of your hand. Its intricate design makes it a charming display piece, a true treasure for enthusiasts.
• Reversing Structure: Equipped with forward and reverse gears and a unique automobile hand wave mechanism, this model features a miniature stainless steel crankshaft with bearings at both ends, ensuring smooth operation and durability.
• High Performance: Despite its small size, this steam engine model boasts low power consumption paired with impressive thermal/dynamic conversion efficiency. Ideal for compact spaces, it operates effectively with a low boiler (50 * 100mm diameter).
• Easy Maintenance: Designed with a detachable structure, this model allows for straightforward maintenance and easy replacement of parts, ensuring it remains a cherished piece for years to come.
• Perfect Gift & Educational Tool: An excellent gift for kids' science projects, mechanical learning, or as a teacher’s demo prop. It makes a thoughtful birthday present for friends and family, appealing to both young minds and seasoned collectors alike.

Using Instructions:

To set up your steam engine:

1. Connect the boiler (not included) to the model.
2. Add steam cylinder oil to lubricate all moving parts.
3. Connect a φ4mm copper pipe.
4. Maintain pressure between 2-4 and open the steam valve for operation.

Specifications:

• Item Name: Mini V4 Steam Engine
• Material: Metal
• Structure: Piston slide valve
• Number of Cylinders: 4
• Bore x Stroke Size: 8 x 8mm
• Gear Ratio: 1: 2: 2
• Output Shaft: φ3mm
• Pressure: 3kg / cm²
• Temperature: 50 ～ 120 ℃
• Lubricator: Nut type
• Dimensions: 120(L) x 85(W) x 100(H)mm
• Weight: 300g

Don't miss out on the chance to own this captivating piece of engineering! Whether for educational purposes or as a stunning gift, add the Compact V4 Steam Engine Model to your cart now!
