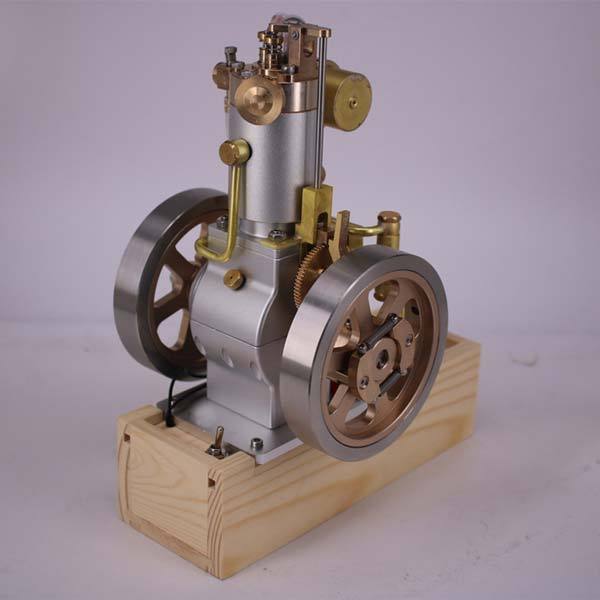

Experience the Wonder of Engineering with Our Vertical Hit and Miss Metal Engine!
Unleash your inner engineer with the Vertical Hit and Miss Metal Engine, a sophisticated blend of craftsmanship and education. This DIY model is not just a mechanical marvel; it’s a gateway into the world of internal combustion engines. Perfect for hobbyists and educators alike, this engine is engineered for performance and aesthetic appeal!
Standout Features:
Stable Structure: The flywheel's inner pulley supports various functions, including power generation and pumping, while the outer pulley allows for easy hand starting. The engine's solid base ensures reliability and stability in operation.
High-Quality Materials: Crafted entirely from metal and featuring a polished surface, our engine combines durability with a sleek finish that enhances any collection.
Versatile Gift Option: This engine serves as an exceptional gift for teachers as demonstration props, a unique birthday present for friends and family, or as a captivating ornament for your home or office.
Specifications:
Engine Size: 180 x 125 x 220mm
Cylinder Diameter: 22mm
Stroke: 20mm
Displacement: 6 CC
Revolution: 1200 RPM
Ignition Power Supply: 3.7V (Requires 3 AA Batteries, not included)
Fuel: Gasoline
Weight: 1610G (Packaging Weight: 2200G)
Engine Startup Steps:
Open the bottom plate to check the engine wiring, connect the fuel tank pipe, and install three No. 5 batteries.
Fill the fuel tank with gasoline (95#), ensuring no air is present in the oil pipe.
Turn the engine's right side clockwise several times to ensure proper fuel entry into the cylinder.
Power on the switch and turn the flywheel clockwise to start the engine.
Important Tips:
Adjust the carburetor needle if the engine does not start despite normal ignition.
Ensure the water tank is filled to prevent pump malfunction.
Children should be supervised by adults during operation.
What’s in the Box:
1 x Vertical Hit and Miss Engine
1 x Engine Spare Parts Hand Start Device
Don’t miss out on the chance to own this intricate engineering masterpiece! Order your Vertical Hit and Miss Engine today! Dive into the mechanics of motion and watch your creativity come to life!
