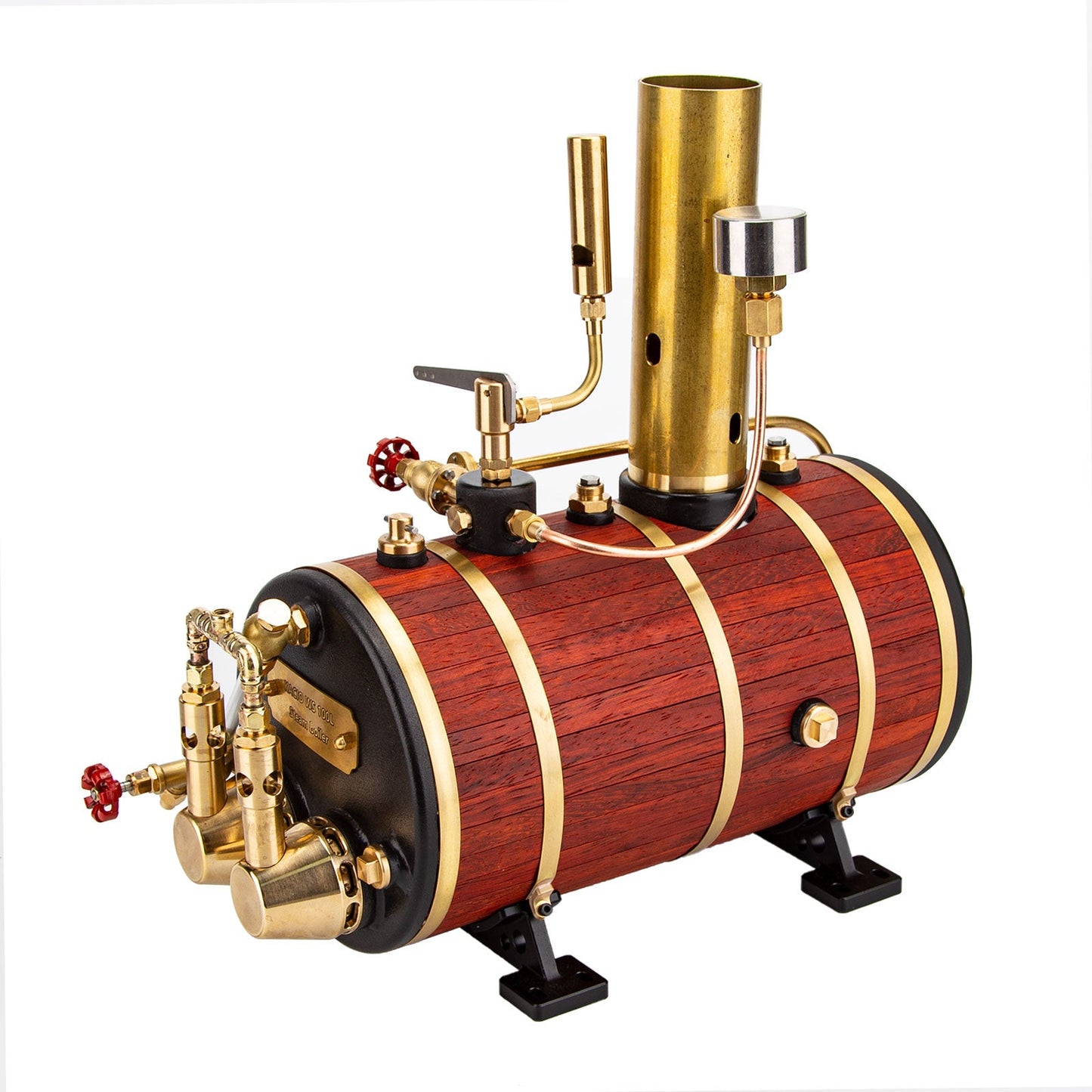

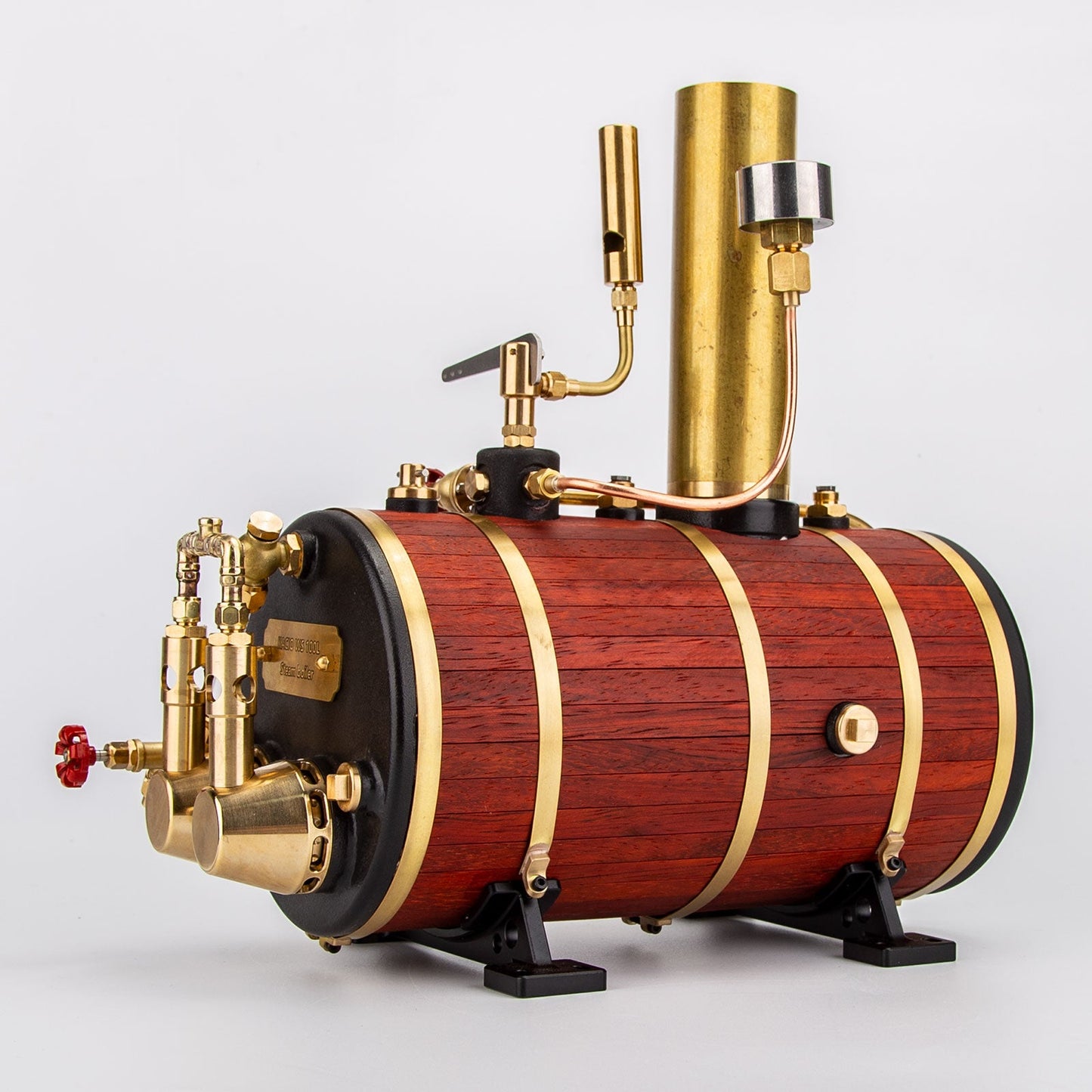

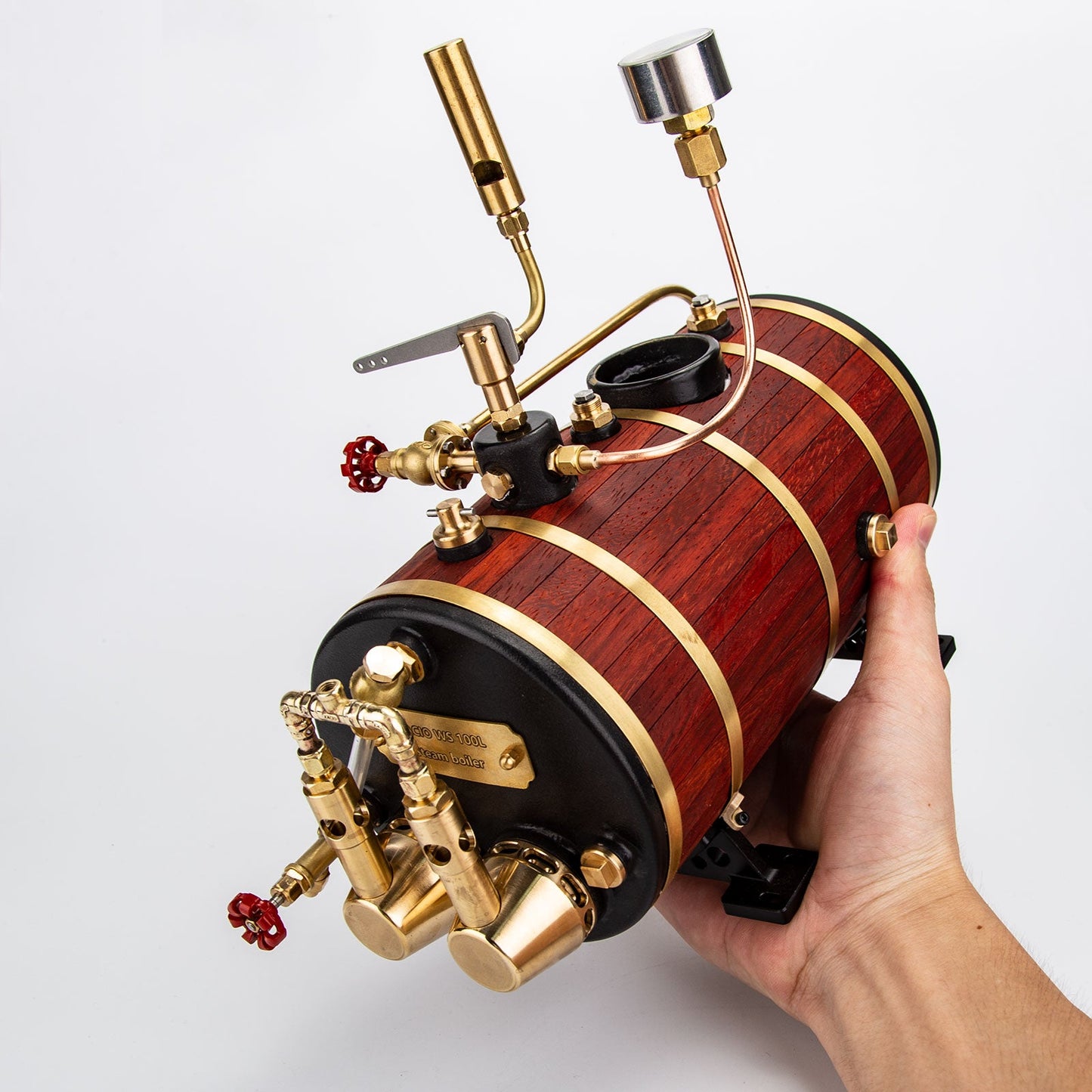

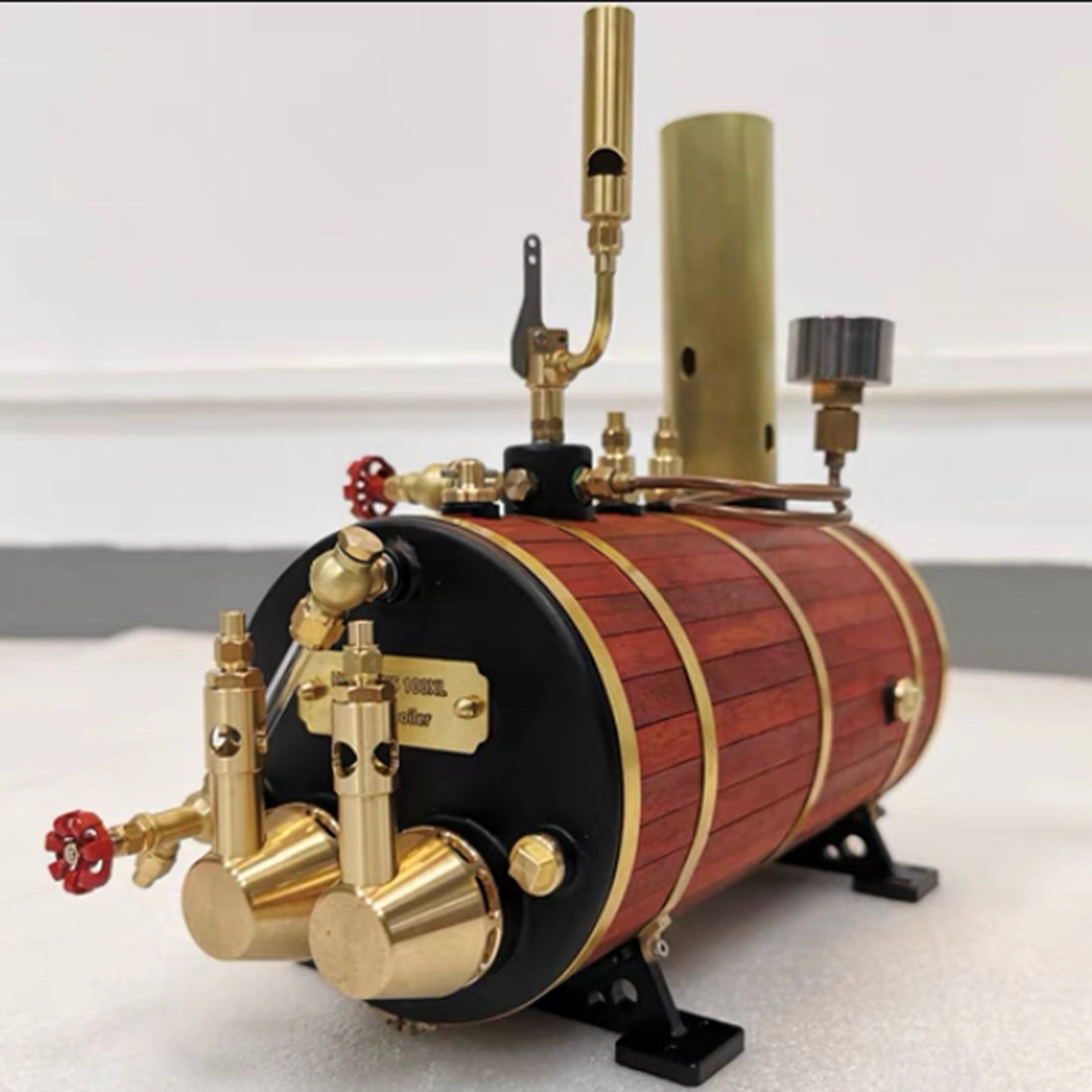

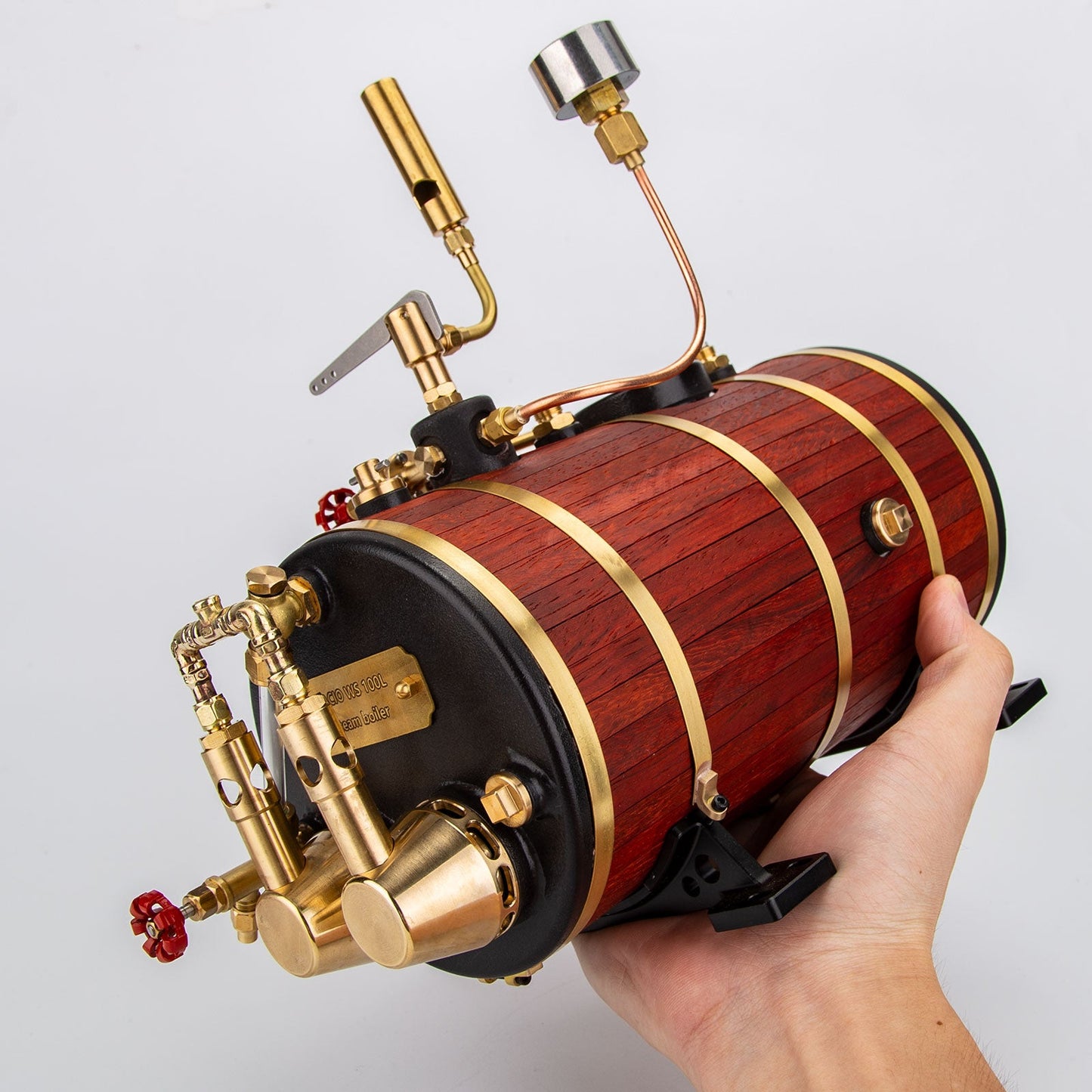

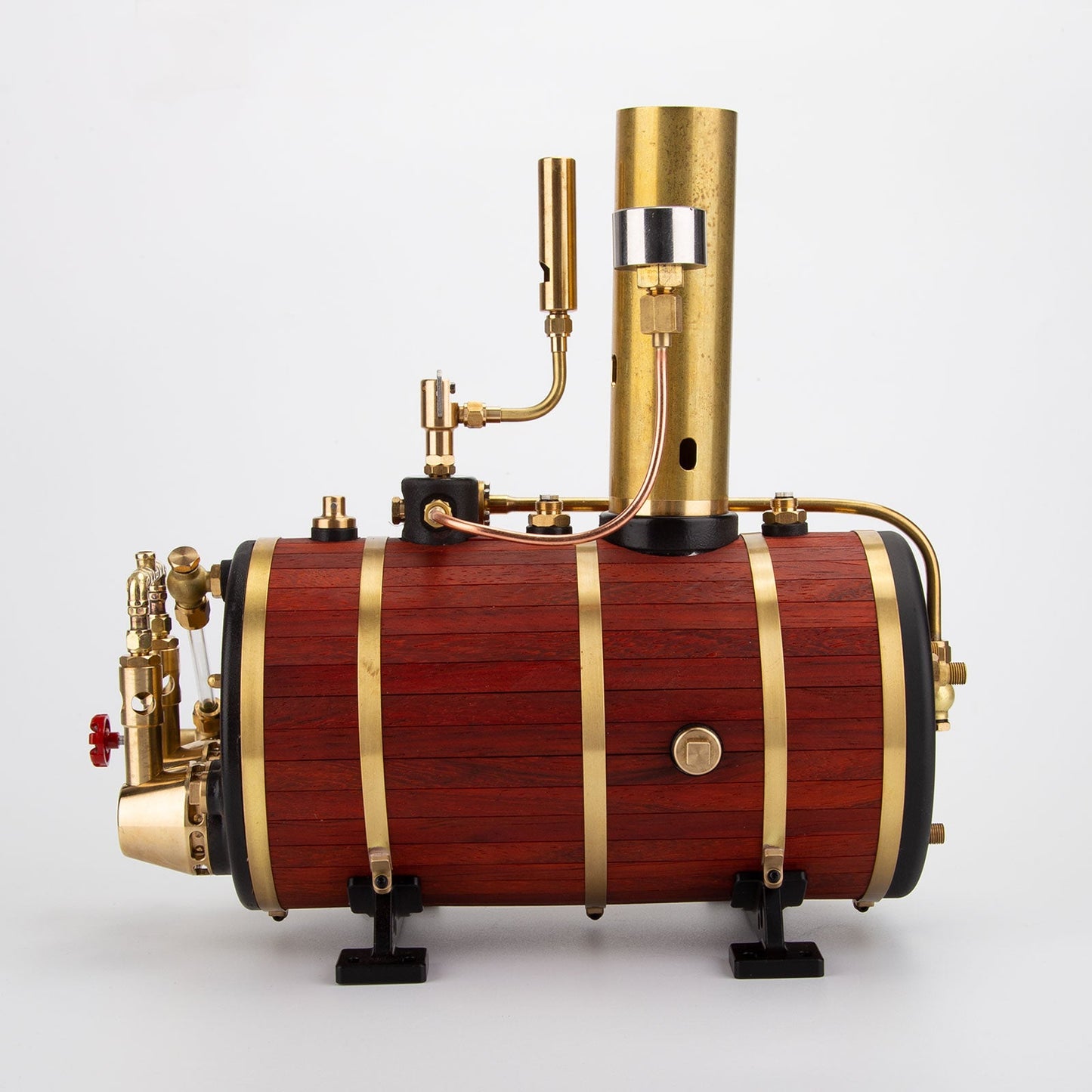

KACIO WS100L 850mL Horizontal Steam Boiler for Model Ship Engines - Premium DIY Kit
Elevate your model ship building experience with the KACIO WS100L 850mL Horizontal Steam Boiler. This premium DIY kit is designed specifically for steam model enthusiasts who appreciate both aesthetics and performance. Here’s what makes this steam boiler stand out:

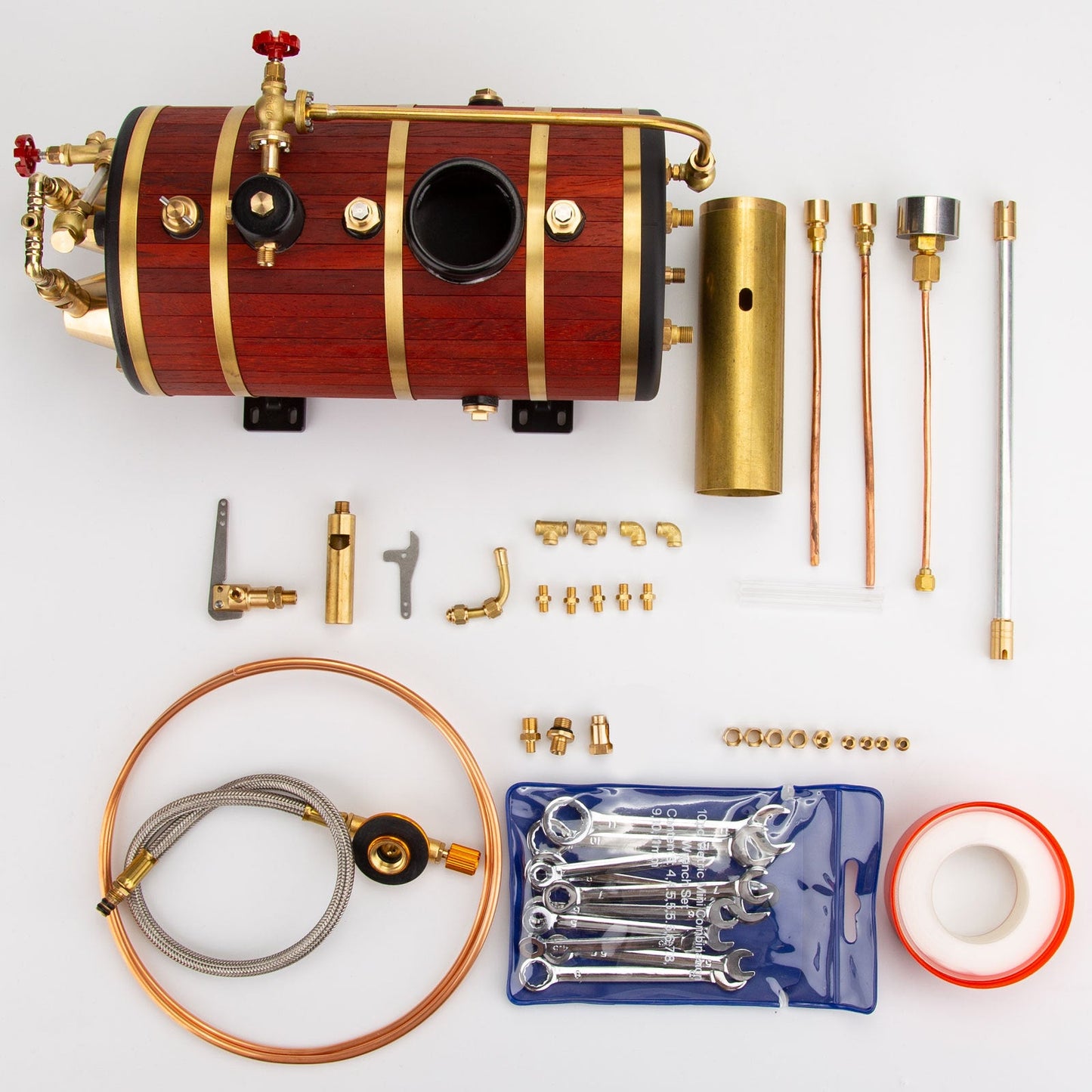

Complete Equipment
Exquisite Design: The boiler showcases a perfect blend of charm and functionality.

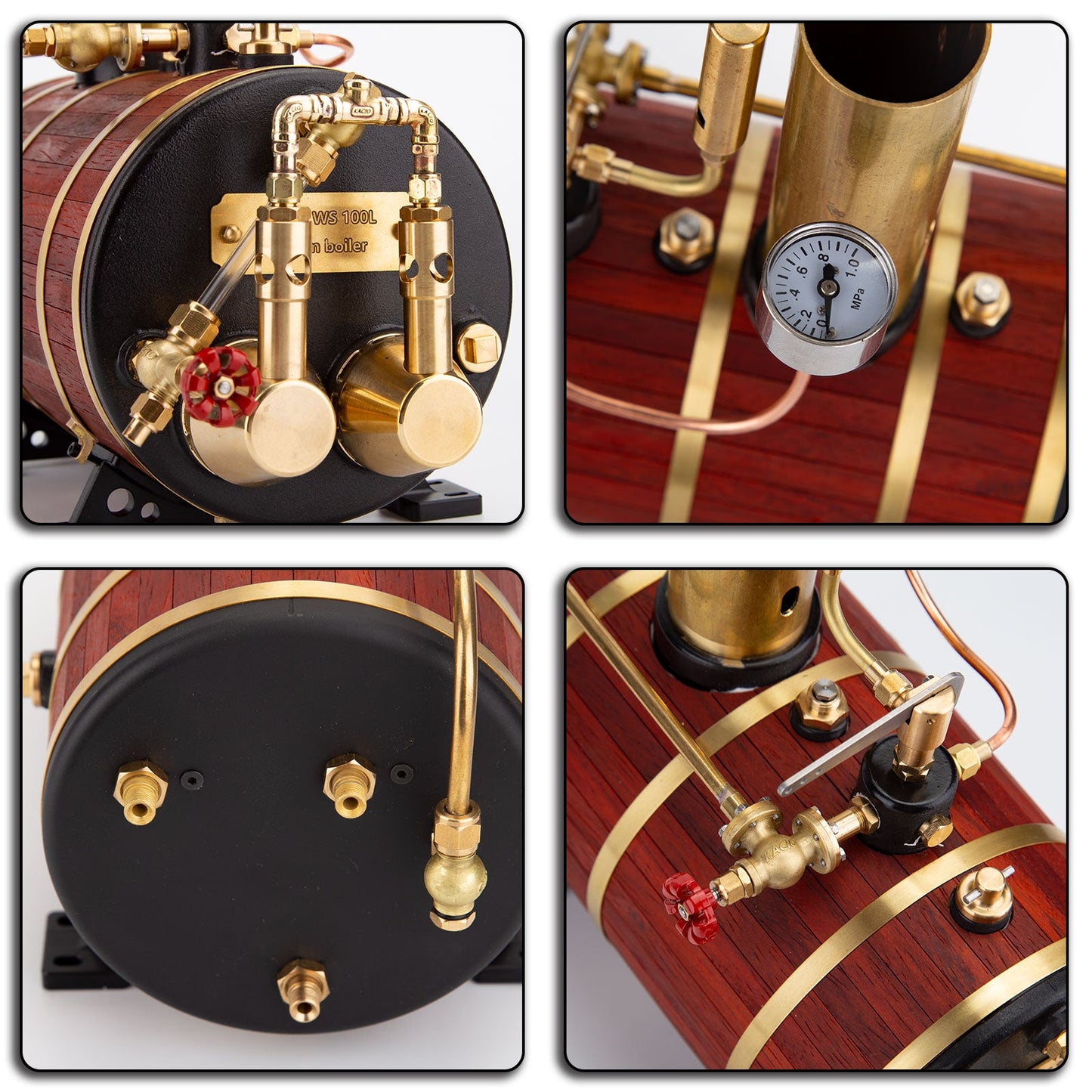

All-Inclusive Features: Equipped with a pressure gauge, siren whistle, total valve, water gauge, and dual safety valves for a comprehensive setup.
Convenient Accessories: Includes 1/4-40mm pipe joint and ports for easy customization and enhancements.
Skillful Manufacture
Quality Materials: Crafted from fine copper, ensuring durability and efficiency.
Thermal Insulation: Designed with a bixa orellana layer for exceptional heat preservation.

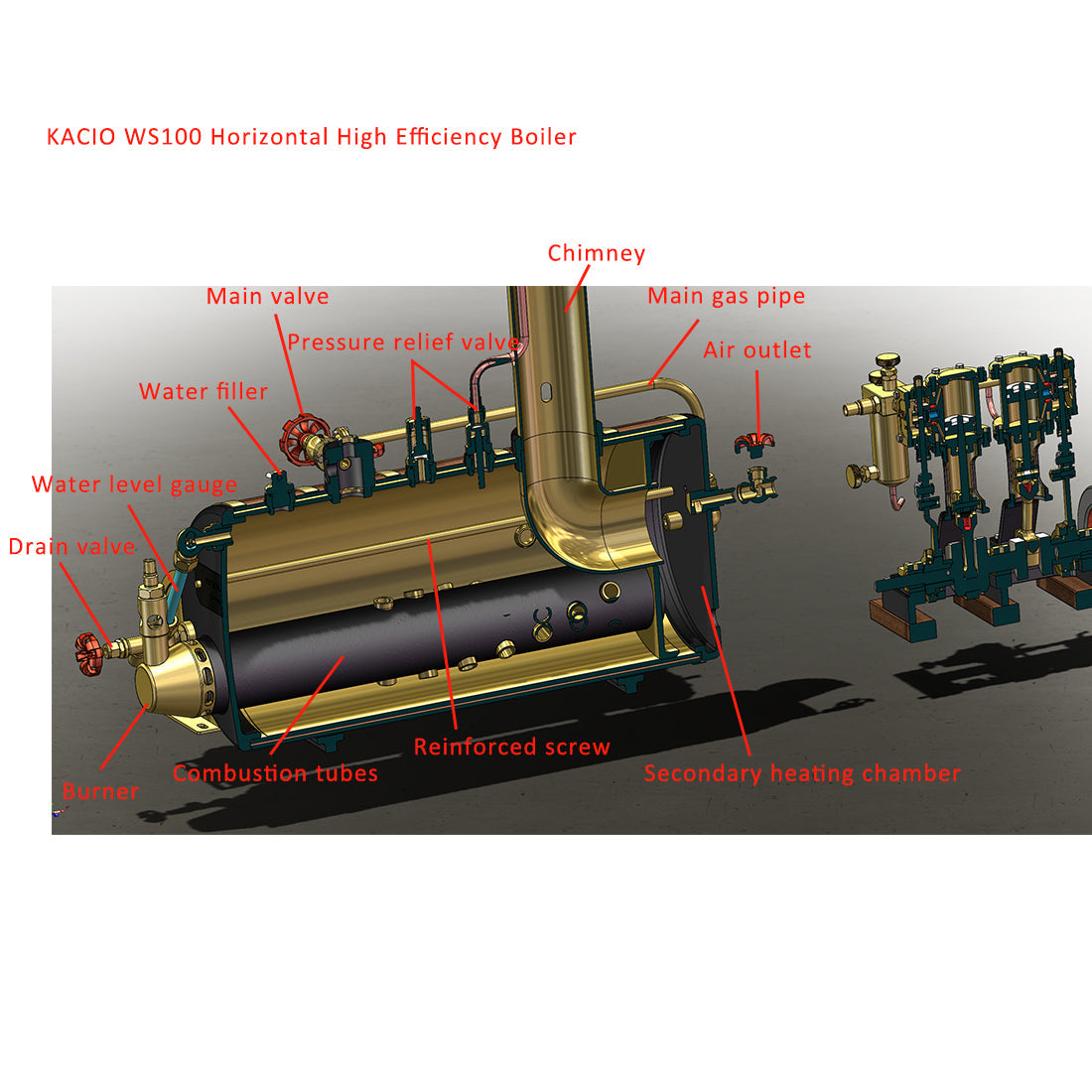

Versatile Design: Features double steam outlets and reserved smoke input ports, with additional ports for further accessory integration.
High Efficiency
Rapid Heating: Achieves ultra-high thermal conversion, reaching up to 0.4MPa in approximately 8 minutes.
Safety First: Safety valve pressure set at 0.5MPa to ensure secure operation during use.
Application Ranges
This steam boiler is not just a tool; it’s a collector's dream. Perfect for:

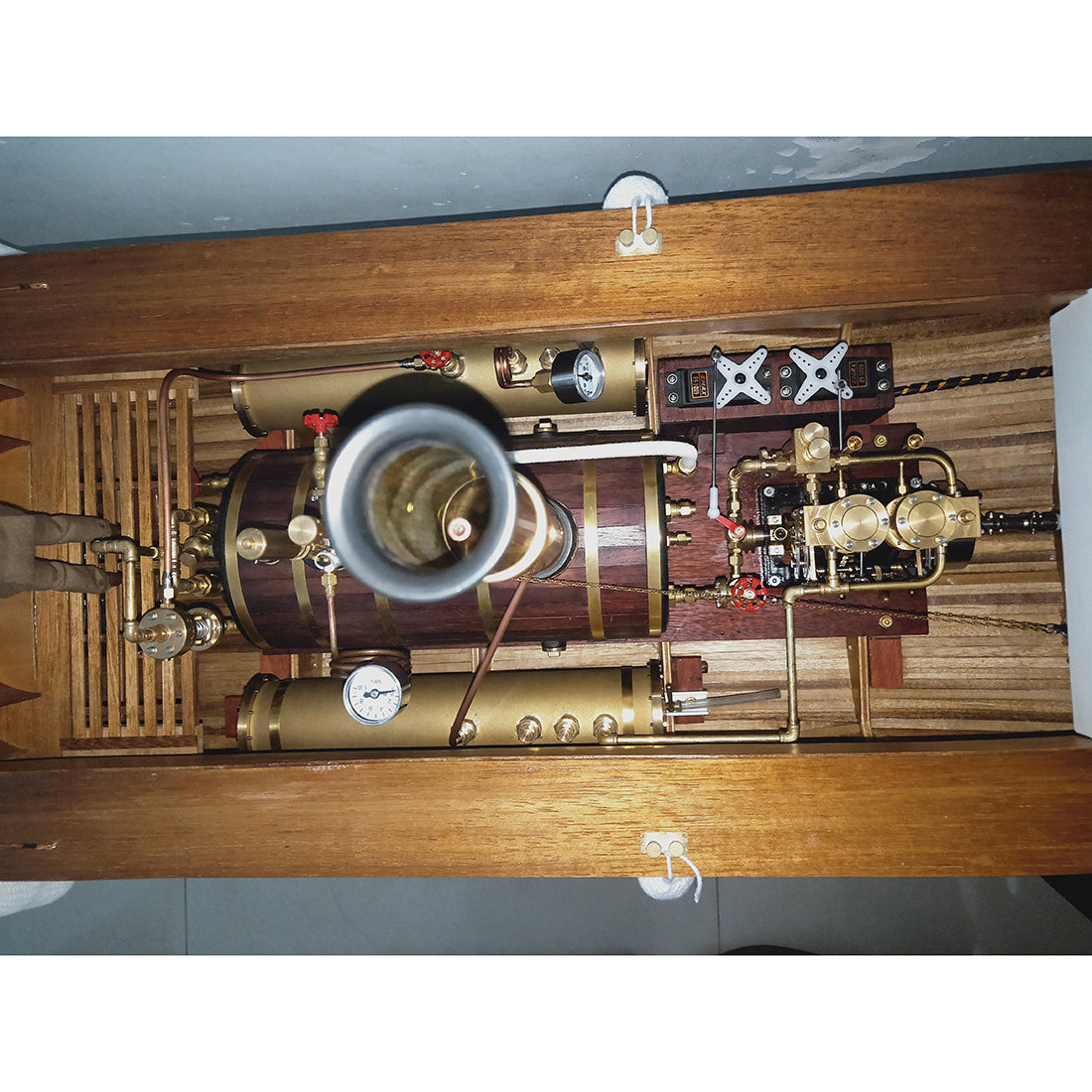

1.0-1.5m steam model ships

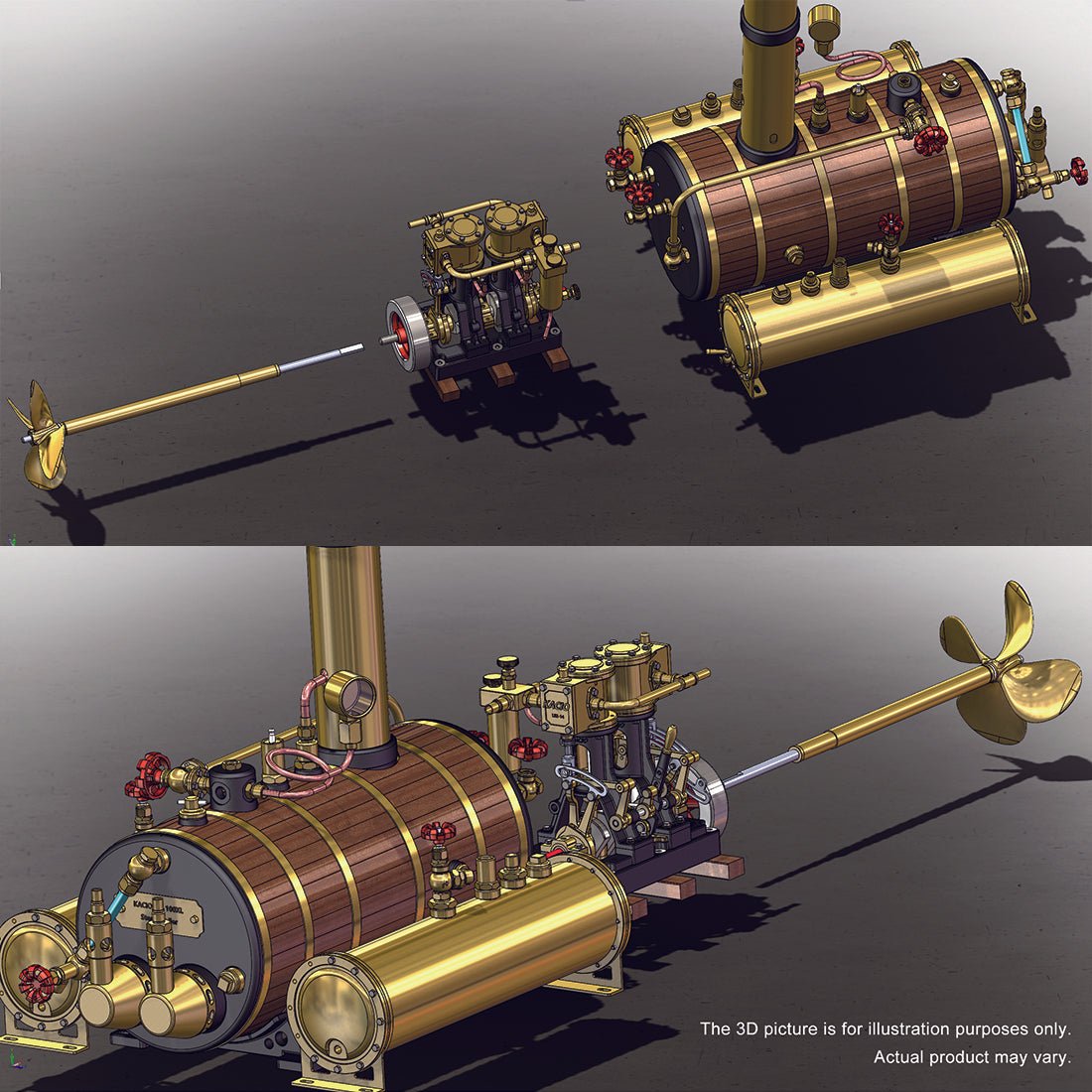

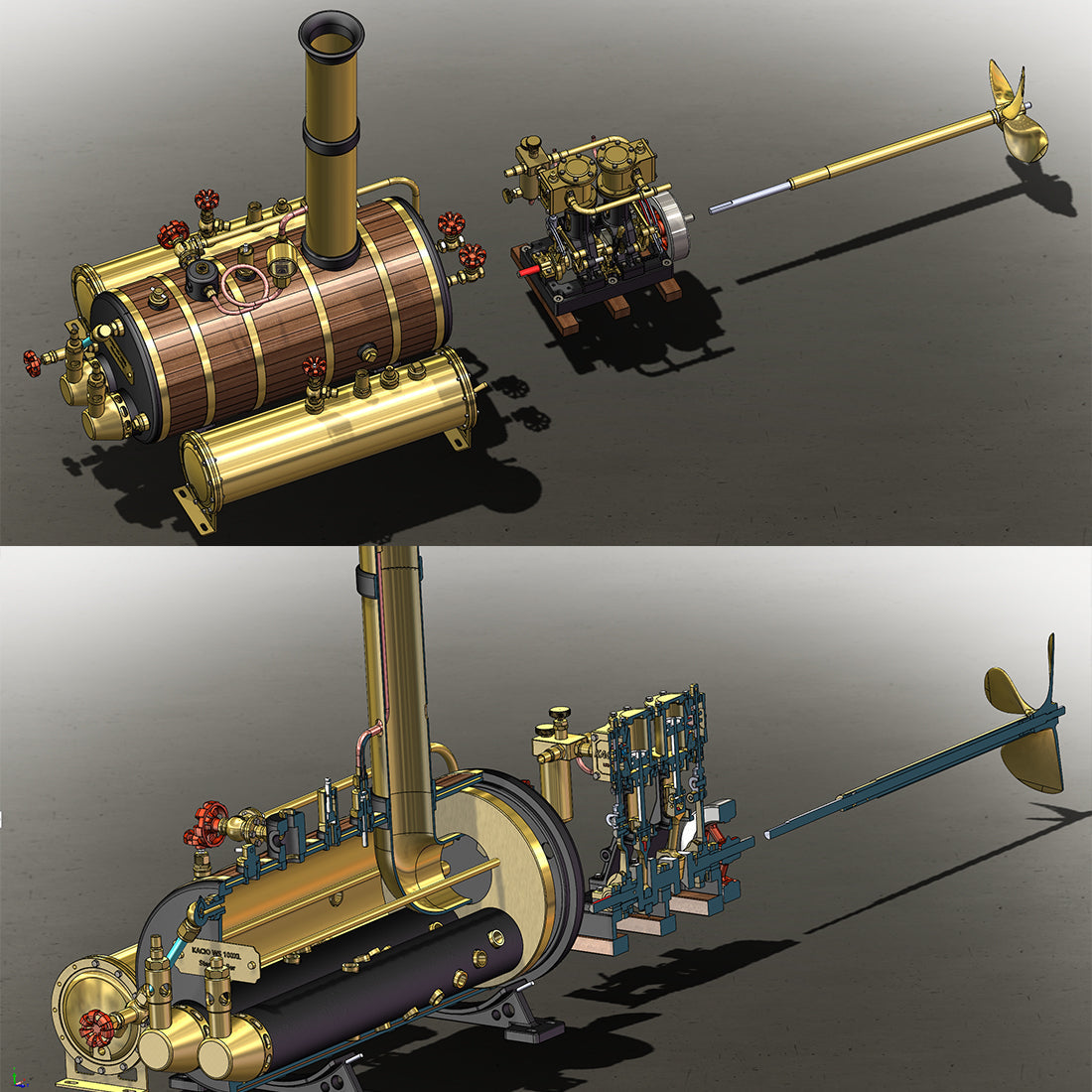

Three-cylinder driven steam engines
Fast racing vessels
Instructions for Use
To ensure optimal performance, please adhere to the following guidelines:
Limit water capacity to 3/5 of full load.
Operate under 0.5MPa pressure for safety.
Avoid dry burning by monitoring burning duration and removing remaining water post-use.
Use butane as fuel in conjunction with a fire control system for enhanced safety and efficiency.
Specifications
Material: Brass + Bixa Orellana
Brand: KACIO
Type: WS100XL

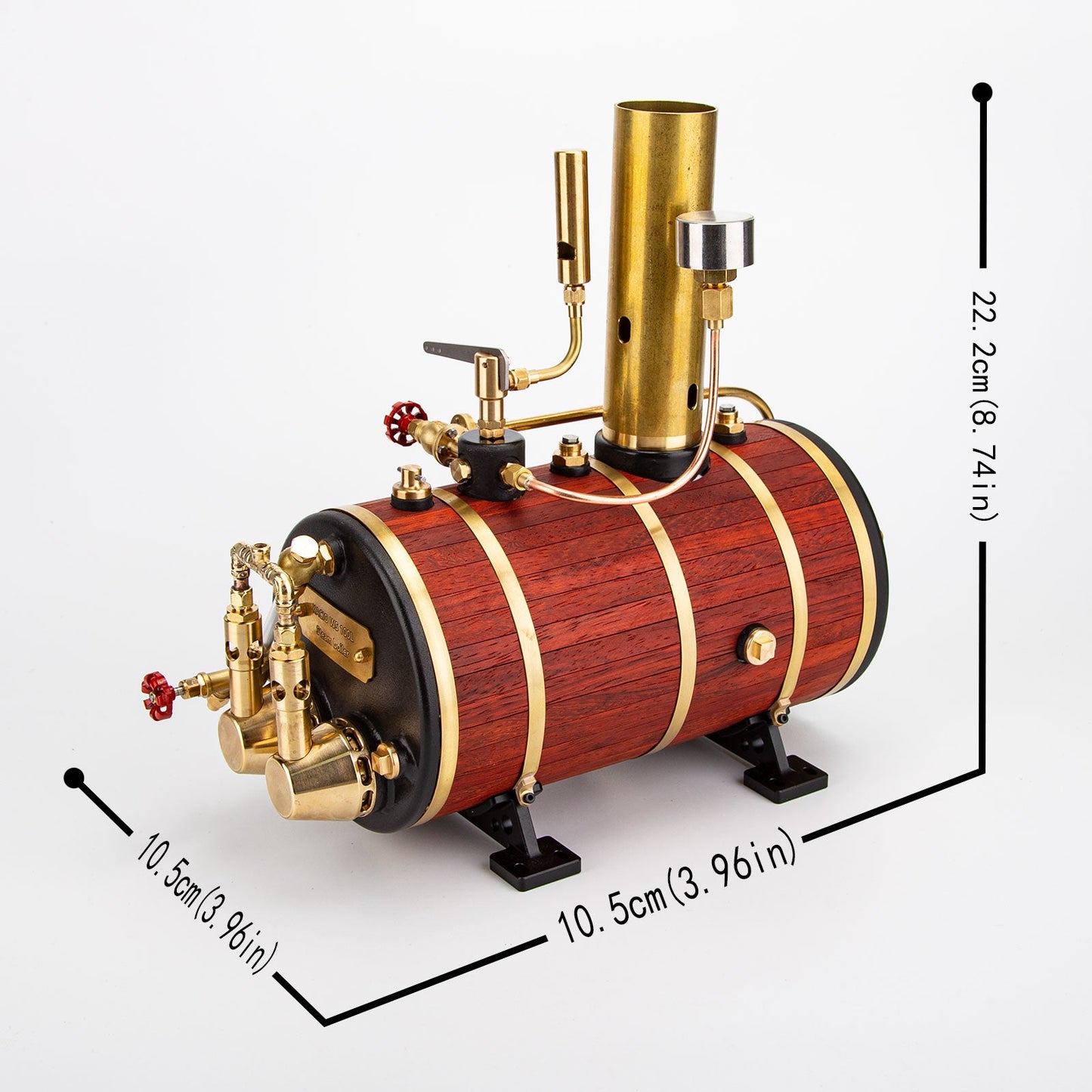

Boiler Outer Diameter: 105mm
Boiler Length: 190mm
Total Length (Including Spark Plug): 222mm
Full-Load Capacity: 850mL
Safety Valve Pressure: 0.5MPa
Pipe Joints Specification: 1/4-40mm
Product Weight: 3000g
Packing: Box
Ages: 14+
