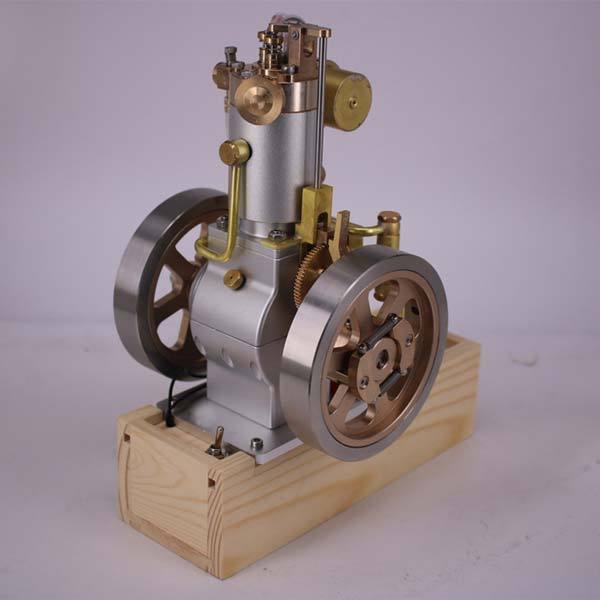

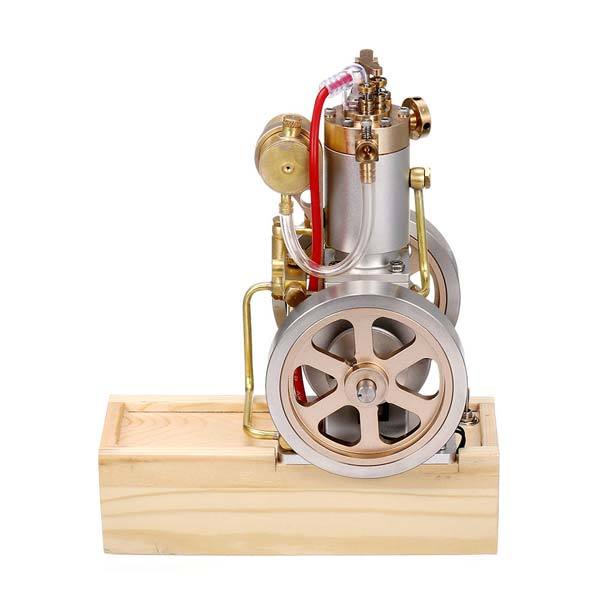

Vertical Hit and Miss Metal Engine with Hand Start and Water Cooling System - DIY Gift Model
Vertical Hit and Miss Metal Engine with Hand Start and Water Cooling System - DIY Gift Model
Couldn't load pickup availability
Estimated Delivery: - - -.
The engine model is incredibly detailed and well-crafted. Perfect for both learning and display, it’s a great addition to my collection!
– James A.
Experience the Wonder of Engineering with Our Vertical Hit and Miss Metal Engine!
Unleash your inner engineer with the Vertical Hit and Miss Metal Engine, a sophisticated blend of craftsmanship and education. This DIY model is not just a mechanical marvel; it’s a gateway into the world of internal combustion engines. Perfect for hobbyists and educators alike, this engine is engineered for performance and aesthetic appeal!
Standout Features:

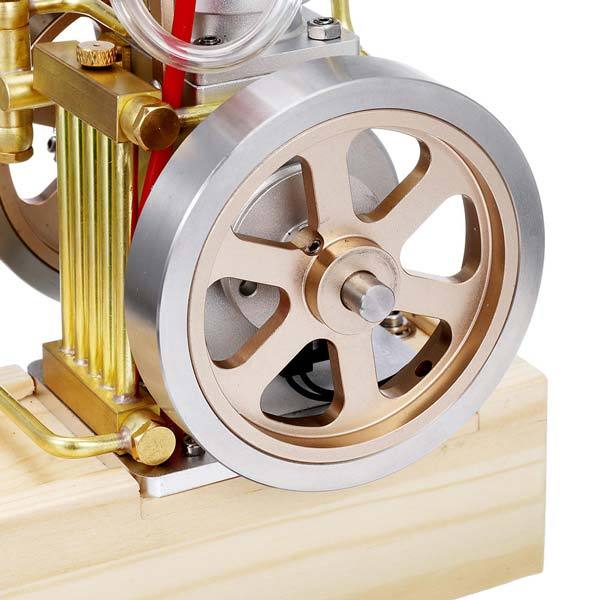

- Stable Structure: The flywheel's inner pulley supports various functions, including power generation and pumping, while the outer pulley allows for easy hand starting. The engine's solid base ensures reliability and stability in operation.
- High-Quality Materials: Crafted entirely from metal and featuring a polished surface, our engine combines durability with a sleek finish that enhances any collection.
- Versatile Gift Option: This engine serves as an exceptional gift for teachers as demonstration props, a unique birthday present for friends and family, or as a captivating ornament for your home or office.
Specifications:
- Engine Size: 180 x 125 x 220mm
- Cylinder Diameter: 22mm
- Stroke: 20mm
- Displacement: 6 CC
- Revolution: 1200 RPM
- Ignition Power Supply: 3.7V (Requires 3 AA Batteries, not included)
- Fuel: Gasoline
- Weight: 1610G (Packaging Weight: 2200G)
Engine Startup Steps:

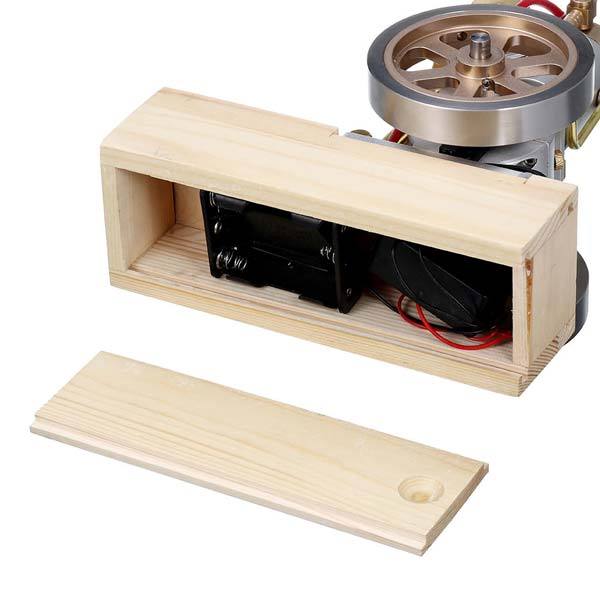

- Open the bottom plate to check the engine wiring, connect the fuel tank pipe, and install three No. 5 batteries.
- Fill the fuel tank with gasoline (95#), ensuring no air is present in the oil pipe.
- Turn the engine's right side clockwise several times to ensure proper fuel entry into the cylinder.
- Power on the switch and turn the flywheel clockwise to start the engine.
Important Tips:
- Adjust the carburetor needle if the engine does not start despite normal ignition.

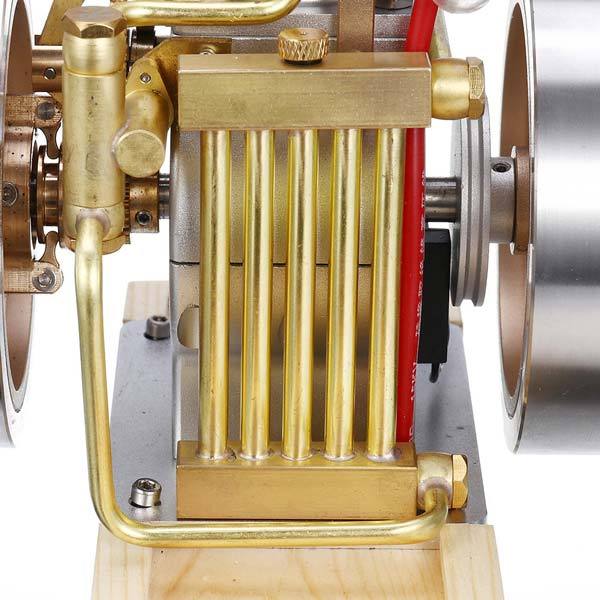

- Ensure the water tank is filled to prevent pump malfunction.
- Children should be supervised by adults during operation.
What’s in the Box:
- 1 x Vertical Hit and Miss Engine
- 1 x Engine Spare Parts Hand Start Device
Don’t miss out on the chance to own this intricate engineering masterpiece! Order your Vertical Hit and Miss Engine today! Dive into the mechanics of motion and watch your creativity come to life!
About Shipping
About Shipping
Q1: Do you offer worldwide shipping?
A1: Absolutely! We proudly provide global shipping services, bringing our engine models to enthusiasts around the world.
Q2: Where do your products ship from?
A2: All orders are shipped directly from our warehouse in China, ensuring quality and efficiency in every package.
Q3: How much does shipping cost?
A3: Great news—international shipping is completely free! We want to make your shopping experience seamless and enjoyable.
Q4: How long will it take for my order to arrive?
A4: Delivery times may vary based on your location. For detailed estimates, please refer to the “Estimated Delivery Time” section on our website.
Q5: How can I track my order?
A5: Tracking your package is easy! Simply use 17track.net with the tracking number provided. Need assistance? Reach out to our friendly support team at support@diyengmod.com, and we’ll keep you updated every step of the way.
Let me know if you'd like further tweaks!
About Payment
About Payment
Q1: What payment methods can I use?
A1: We accept payments via PayPal and major credit cards, providing you with secure and convenient options to complete your purchase.
Q2: What should I do if my payment is declined?
A2: If your credit card payment is declined, don’t worry! You can either contact Stripe support for assistance or switch to PayPal to finalize your order. We’re here to ensure a smooth checkout experience!
Q3: Can I cancel my order?
A3: Yes! If your order hasn’t been shipped yet, just email us at support@yourdomain.com. We’ll cancel the order and process a full refund for you.
Q4: Is my personal information safe on your website?
A4: Absolutely. Your privacy and security are our top priorities. We use advanced encryption and secure systems to protect your sensitive information, both online and offline. You can shop with confidence!
Q5: What happens if I provided the wrong shipping address?
A5: Mistakes happen, and we’ve got you covered! If the shipping address is incorrect, your package will be returned to us after a failed delivery attempt. Once we receive it, we’ll reach out to confirm the correct address and arrange for reshipment.
About Return & Refunds
About Return & Refunds
Q1: What items are eligible for return?
A1: We accept returns or exchanges within 30 days of purchase. To qualify, items must be unused, unwashed, unworn, and in their original condition and packaging.
Q2: How do I return an item?
A2: To start a return, email our support team at support@diyengmod.com to confirm your eligibility. Once approved, we’ll provide you with detailed return instructions. After shipping the item back, please share the tracking number with us to ensure a smooth process.
Q3: What is your refund policy?
A3: Refunds are typically processed within 1-5 business days after we confirm your cancellation or receive your returned item.
Q4: How will I receive my refund?
A4: Refunds will be issued to the original payment method used during checkout, ensuring a hassle-free experience for you.
Jump to:
Customer Reviews
Hit&Miss Engine,
The control system has been partially removed and the machine in the Control times changed, some paint and imagination.
Très bel objet malheureusement impossible de le démarrer je ne comprends pas pourquoi et impossible de trouver des explications en français.
En attendant d’en savoir plus ça décore .
Great little engine. Starts up easy right out of the box. Only one complaint, after 10 minutes of run time the water pump failed causing the geared cam to come loose. Problem was resolved very quickly by Lucas from customer support. A week later I had a new water pump and only about 30 minutes of work required to install the new part. Ben Problem free sense very happy with it and this is the 4th motor in this line I've bought look forward to buying the new air cooled model they have out now.
You will be very satisfied with the quality and precision of this machine. It works extremely well
A beautiful piece of machinery, well finished, great for display. It runs well too, after a bit of fiddling. Those intending to run the engine would do well to look at the many videos online, and the model engine forums for tips and tricks.
The good: nice metal work and finish. Can be a sweet running engine.
The bad: mine came through with a sharp edge on the starter pulley rope notch that would cut the rope off in a few uses. A bit of attention with a round file to the notch fixed that.
The furnished display stand is an insult to this fine engine. But if they had to compromise to contain costs, that’s where I’d do it as well. A longer, wider, lower, heavier stand with the engine centered will be a great improvement you can make yourself.
Current engines are shipping with a black rubber spark plug boot that could be better. It looks great, but doesn’t seem to retain the wire in contact with the spark plug as well as it could. A fabricated brass wire terminal made for a secure connection, and reinstalling the rubber boot over it preserved appearance.
Running tips. Use Zippo ighter fluid or Coleman lantern fuel. A little marvel mystery oil mixed in will lube the top end. The needle valve is very touchy. Adjust in tiny amounts, beginning with 1/4 turn open and increasing a hair at a time. Insure there are no air bubbles in the fuel line. Enjoy.
Overall, keeping in mind this is a hobbyist engine, not a simple consumer appliance, with the expectation of a little tinkering or personalizing, it’s great fun, and makes enough power to run a scale generator or whatever, and makes a great desk ornament.
